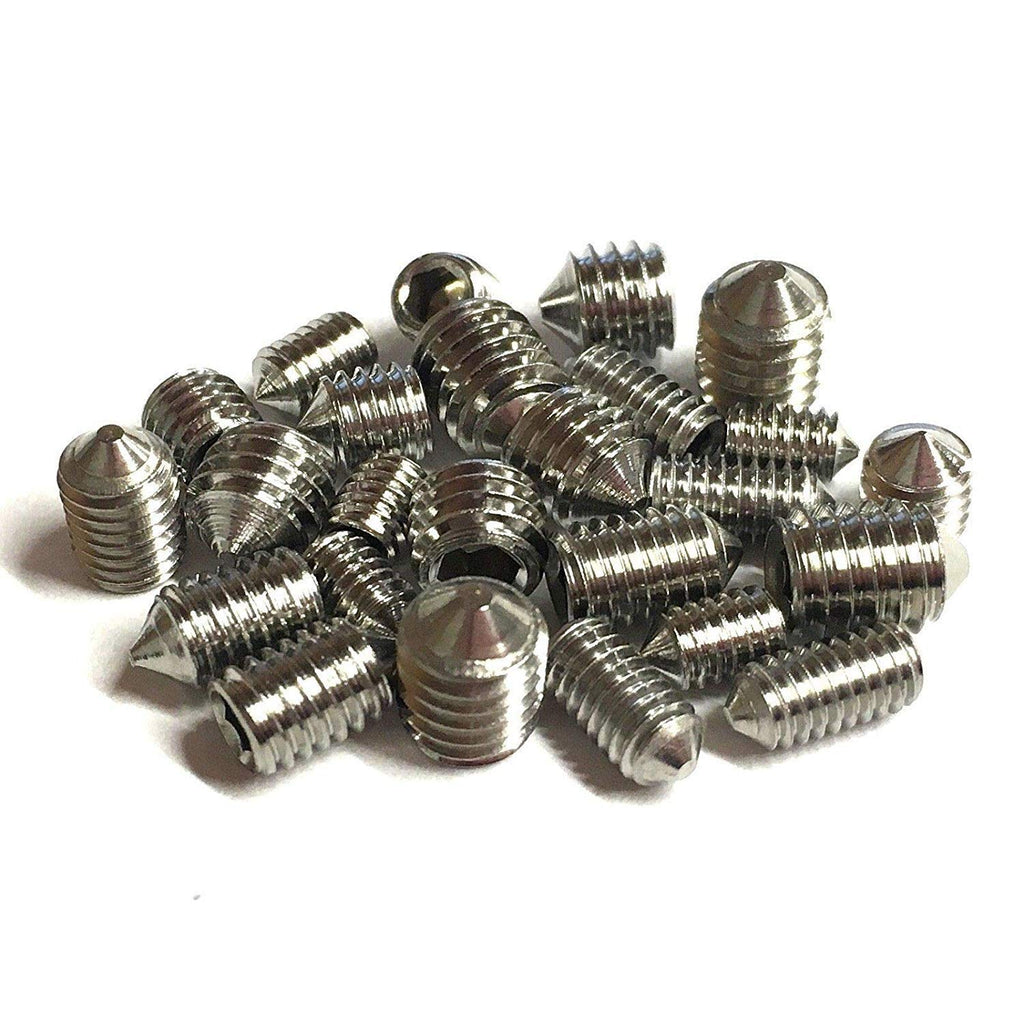

Cone Point Grub Screws, A2 Stainless Steel, M3–M6 x 5mm, 16 Pack

This mixed pack contains 16 A2 stainless steel cone point grub screws in M3, M4, M5 and M6 thread sizes. All screws are 5mm long, with four screws of each size. Each screw has an internal hex socket for use with a matching Allen key.

The set provides four metric thread diameters for fixing applications. Check the thread diameter, pitch, length and required point style against your component before choosing a screw.

Pack contents and thread sizes

• 4 × M3 x 5mm: 0.5mm thread pitch; requires a 1.5mm Allen key.
• 4 × M4 x 5mm: 0.7mm thread pitch; requires a 2mm Allen key.
• 4 × M5 x 5mm: 0.8mm thread pitch; requires a 2.5mm Allen key.
• 4 × M6 x 5mm: 1mm thread pitch; requires a 3mm Allen key.
• Total supplied: 16 grub screws.

Material and specification

• Material: A2 grade stainless steel.
• Point style: cone point.
• Drive: internal hex socket.
• Thread system: metric.
• Length: 5mm, approximately 0.197 inches, for every screw.

Selection and limitations

A2 stainless steel offers corrosion resistance for fixing applications. These screws are not suitable as replacements in high-tensile applications. Confirm that the material, thread and point style meet the requirements of your assembly; matching diameter alone does not establish suitability.

Frequently asked questions

Are all the screws the same length?

Yes. All 16 screws are 5mm long. The thread diameters vary from M3 to M6.

Which Allen keys are required?

M3 screws require a 1.5mm key, M4 a 2mm key, M5 a 2.5mm key and M6 a 3mm key. Allen key inclusion is not specified for this pack.

Is this a single-size pack?

No. The mixed pack contains four screws each in M3, M4, M5 and M6.
