HDPE Round Rod – Translucent White 100mm Diameter x 300mm Grade A PE500
£36.75
READY TO SHIP

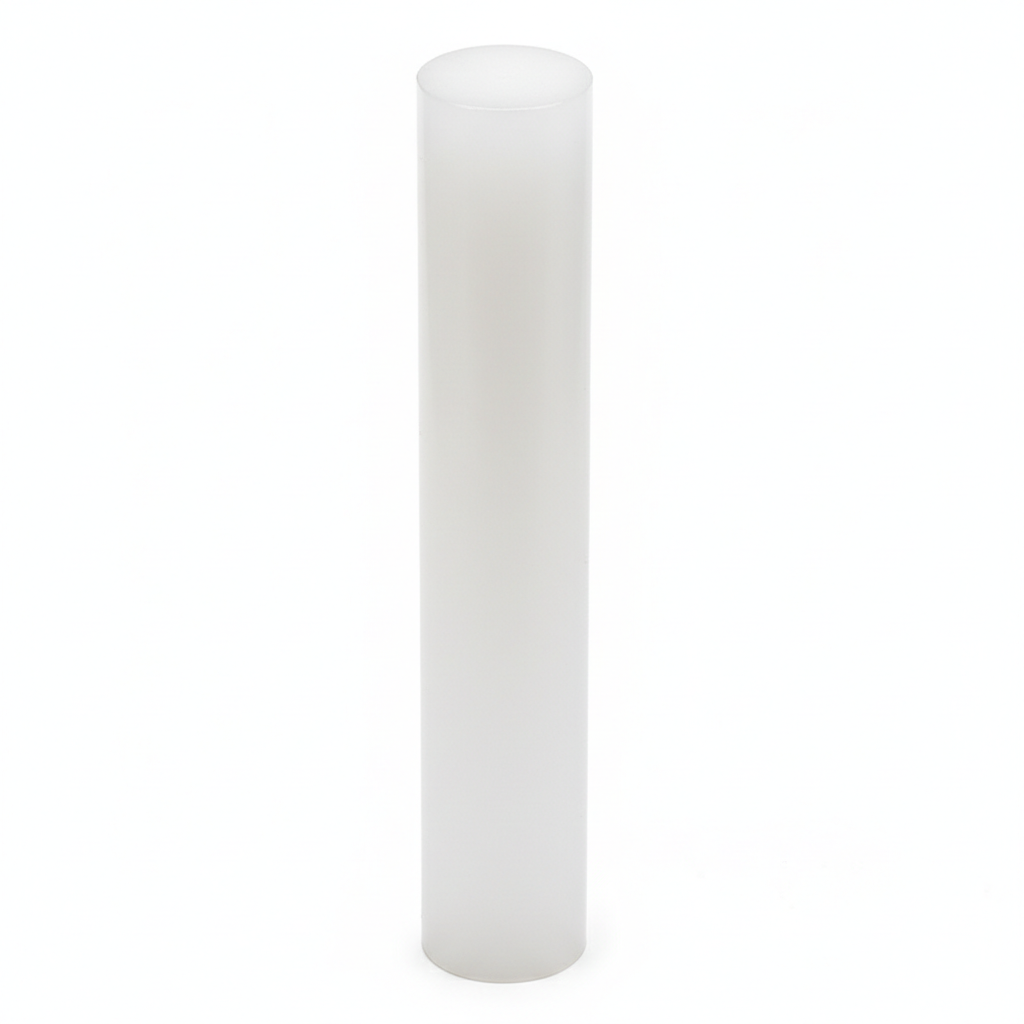

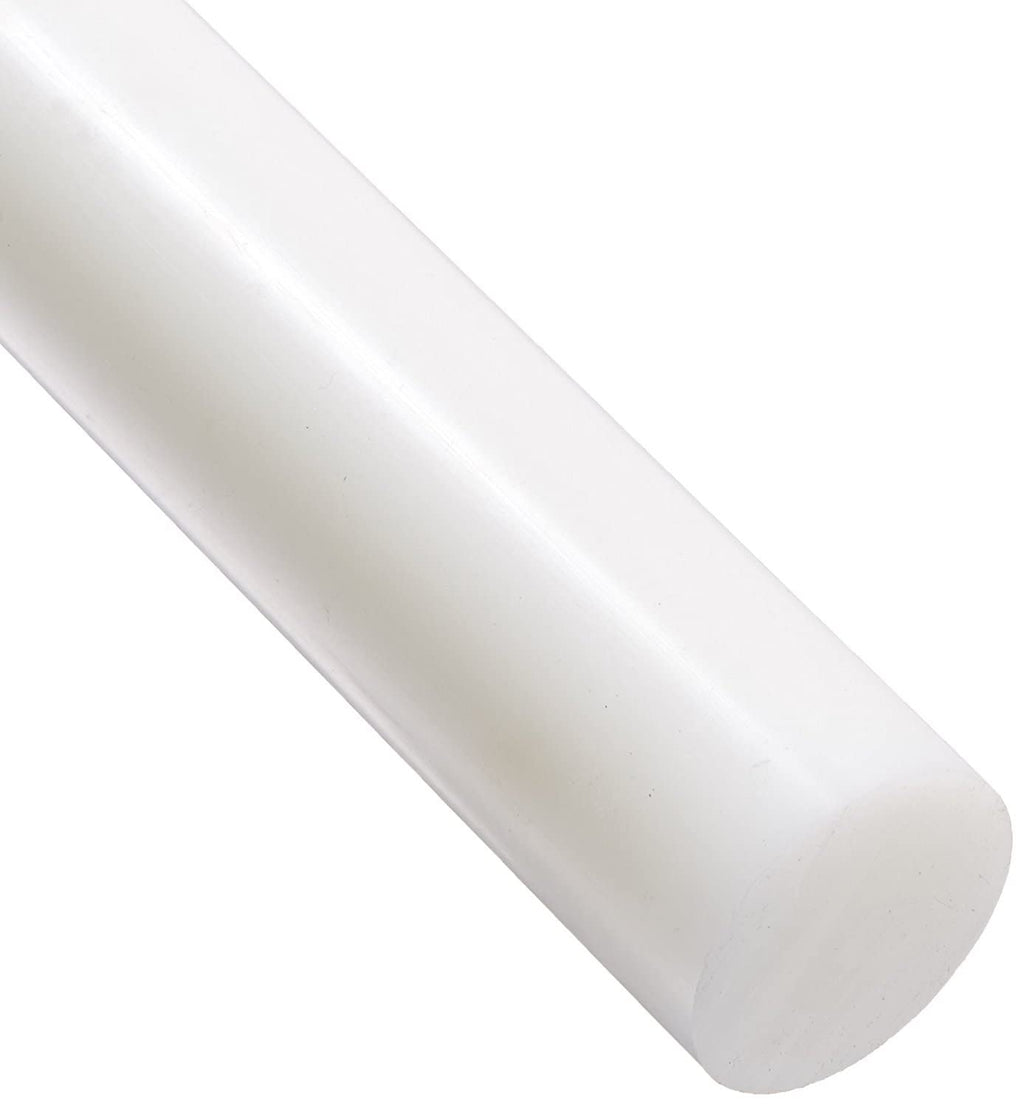

HDPE Grade A PE500 Round Rod – Translucent White (100mm Ø x 300mm)
High-Density Polyethylene (HDPE) Grade A PE500 round rod in a translucent natural finish. At 100mm diameter, this compact billet is ideal for machining into pump housings, valve seats, guide blocks, large-diameter spacers, and wear components. Produced in the UK.
Key Properties
- Tensile strength at yield: 25 MPa
- Elongation at yield: 9%
- Modulus of elasticity (tension): 1,000 MPa
- Impact strength: No break (kJ/m²)
- Shore hardness D: 64
- Service temperature (long term): 80°C / (short term): 90°C
- Coefficient of thermal expansion: 13–15 × 10⁻⁵ K
- Water absorption at saturation (23°C): <0.05%
- Flammability (UL94): HB
Why Choose HDPE PE500?
- Excellent wear and abrasion resistance
- Low coefficient of friction – ideal for sliding and guide components
- High chemical resistance to acids, alkalis, and solvents
- Food-safe and halogen-free
- Eco-friendly – significantly lower energy to produce than steel
- Outstanding machinability and dimensional stability
Suitable for food machinery, chemical dosing systems, marine installations, and general engineering use.
